Cabinets Specifically Designed for LED Advertising Displays
Made of high-strength metal, these LED cabinets are suitable for both indoor and outdoor advertising. They are sturdy, durable, come with a 2-3 year warranty range, subject to product model and contract terms, and include after-sales technical support!
- Cabinet dimensions (mm): 960×960/1000×1000
- Cabinet material: Iron or aluminum
- Cabinet features: IP65 protection rating, supports front and rear maintenance, refresh rate up to 7680Hz
- Cabinet dimensions (mm): 500×250/750×250/1000×250/1000×500
- Cabinet material: Die-cast Aluminum
- Cabinet features: Rigid connection, supports 90-degree right-angle splicing, supports SMD and GOB
- Cabinet dimensions (mm):1000×500/1000×1000 /1500×500/1500×1000
- Cabinet material: Aluminum
- Cabinet features: IP65 protection rating, supports front and rear maintenance, brightness up to 10000 nits
- Cabinet Dimensions: 562.5x1000mm/624.96x1000mm
- Cabinet material: Iron
- Cabinet features: IP65 protection rating, supports front and rear maintenance, supports a certain degree of bending.
Advertising LED Display Functionality Overview
All four of our cabinet series support a 3840Hz high refresh rate, allowing you to experience smooth, lag-free visuals. Customization is available for even higher refresh rates.
Supports 16-bit and higher color depths, accurately reproducing object colors for lifelike visuals.
The cabinets used to manufacture the advertising LED displays are made of environmentally friendly materials that not only do not harm the environment but can also be recycled repeatedly.
The achievable brightness varies depending on the LED packaging technology used. For DIP-packaged technology, maximum brightness can reach 10,000 nits.
Critical components for JYLED advertising LED displays are sourced from reputable suppliers, ensuring reliable quality and exceptional, stable operation during advertising screen use.
JYLED advertising LED displays utilize premium LED chips with a lifespan of approximately 100,000 hours. Even with 10 hours of daily use, they can operate continuously for about 27 years.
Common Cathode LED Technology Saves More Energy
JYLED employs advanced common cathode LED technology in its advertising displays instead of traditional methods. This technology separates control of the LED chips from the driver circuitry, reducing current loss and achieving higher efficiency with less energy.
Compared to LED advertising displays from other manufacturers, JYLED’s screens consume approximately 15% less energy.
Continuous Operation Without Overheating
JYLED’s LED advertising displays feature multi-faceted circuit optimizations that efficiently dissipate internal heat. Consequently, even during 24/7 operation, the display surface remains free from excessive heat buildup, maintaining a consistent temperature between 40-50°C.
Hardwired and Wireless Design
To achieve optimal performance, JYLED advertising displays incorporate both hardwired and wireless design. This approach simplifies disassembly and installation. Additionally, the hardwired connection enhances display stability, significantly improving the overall durability of the advertising LED screen.
Differences Between Indoor and Outdoor Advertising
JYLED has designed two different LED advertising displays specifically for indoor and outdoor environments. These, combined with our cabinet series, can adapt to various settings.
Indoor and outdoor displays differ in brightness, pixel pitch, viewing distance, and other specifications. Please refer to the table below for selection guidance:
| Parameter | Indoor Advertising | Outdoor Advertising |
| Pixel Pitch | P1.25, P1.56, P1.86, P2, P2.5, P3 | P2.5, P3, P3.91, P4, P4.81, P5, P6, P8, P10 |
| Brightness | 800–1,200 nits | 4,500–10,000 nits |
| Refresh Rate | 3840Hz / 7680Hz | 1920Hz / 3840Hz / 7680Hz |
| Maintenance method | Front(main), Rear | Front, Rear, and Front & Rear |
| Recommended cabinet series | FD Series | FC Series, FE Series, FE-C Series |
| Protection | IP31,IP43 | IP65 |
| Viewing distance | 1–10m | 5–100m+ |
| Cost | 300-2000USD/㎡ | 500-1500USD/㎡ |
| Application | Retail, mall, airport, restaurant | Billboard, roadside, building facade |
Tips for choosing an LED advertising display：

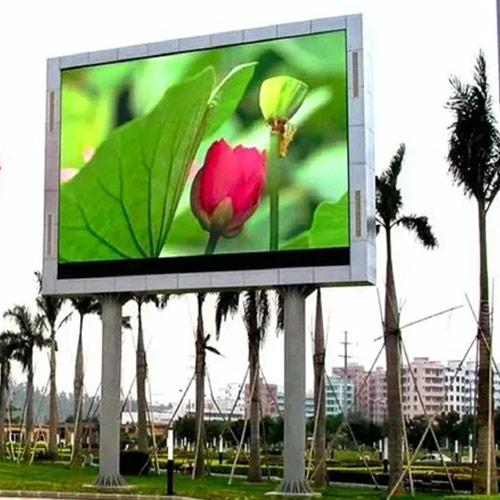

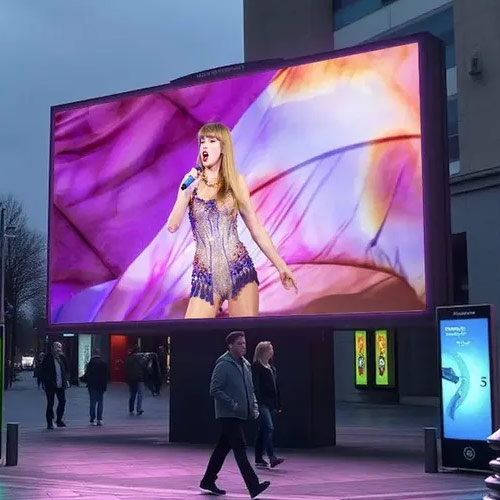

If you need a large LED display screen for viewing from a distance, you can prioritize LED advertising displays for outdoor use. They have high brightness and large pixel pitch, which not only have relatively low cost, but are also very suitable for viewing from a distance.
If you need a high-definition display screen for close-up viewing, then you should prioritize LED advertising displays for indoor use. They have high-density LEDs and can easily achieve ultra-high resolutions of 4K or even 8K, making them the best choice for indoor high-definition displays.
As one of the world’s largest shopping malls, Dubai Mall features a variety of LED advertising displays, some of which were produced in collaboration with JYLED.

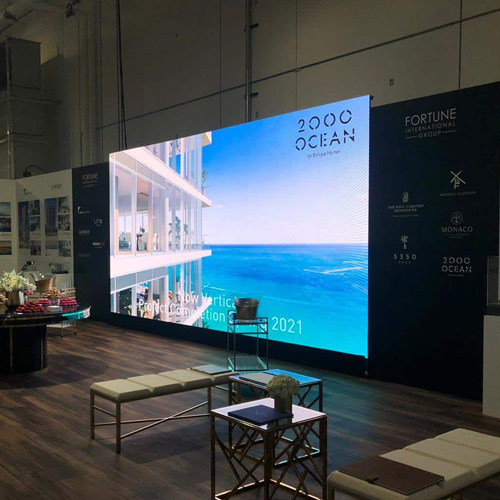

The image on the left shows a typical indoor advertising project; key specifications include:
| Project | Parameter |
| Type | LED Advertising Display (Indoor) |
| Pixel pitch | P3.9 |
| Brightness | 800-1500 nits |
| Refresh Rate | 3840Hz+ |
| Installation method | Fixed installation |
| Scope of application | Brand advertising, event promotion |
The image on the left shows the LED advertising and event display systems commissioned by Fenway Park from JYLED last year (2025), capable of showcasing various commercial advertisements. Key specifications include:
| Type | Stadium Advertising Display |
| Main display size | 100 × 38 ft |
| Total LED area | ＞9000 ft² |
| Ribbon Board | 1850 ft² |
| Scope of application | Advertisements, live event broadcasts, replays |
As one of the world’s busiest airports by passenger traffic, Dubai International Airport utilizes numerous LED advertising displays. The image on the left shows one of the screen types customized by JYLED:
| Type | Airport Advertising Display |
| Pixel pitch | P2-P5 |
| Brightness | 1000-3000 nits |
| Scope of application | Advertising, flight information, brand promotion |
| Installation location | Departure hall, duty-free shop, baggage area |

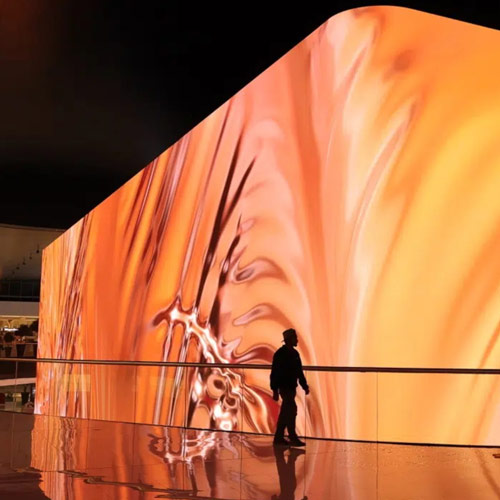

This indoor LED display features over 7.7 million independently controllable LED pixels and a diameter exceeding 15 meters; it also supports interactive engagement between people and the screen. Key specifications include:
| Type | Floor display |
| Pixel pitch | P2.976 |
| Brightness | 800-1500 nits |
| Round diameter | 15m |
| Scope of application | Brand advertising, conference events |
| Installation location | Lobby |
The outdoor advertising display at the Nike flagship store in Shanghai’s IFC Mall was produced using the JYLED FD Series. Key specifications include:
| Project | Parameter |
| Type | Retail Advertising Display |
| Pixel pitch | P1.25 |
| Brightness | 800-1200 nits |
| Scope of application | Brand advertising and new product launches |
| Viewing distance | 1-5m |
Why is JYLED the Premier Advertising LED Display Manufacturer?
With numerous advertising LED display manufacturers in the market, why is JYLED the premier choice? Let’s explore in detail.
JYLED’s LED advertising displays have passed multiple international certifications, including FCC, CE, and RoHS, demonstrating international recognition for their durability and reliability.
Whether you need to install a commercial advertising display on the ceiling, floor, or in a shop window, we can easily meet your customization needs.
All our LED advertising displays undergo 12 rigorous tests, including dead and live lights, waterproofing, dustproofing, and corrosion resistance.
We have dozens of experienced engineers on standby to help you solve any technical problems immediately.
- More Project Cases
- Obtained Certificate

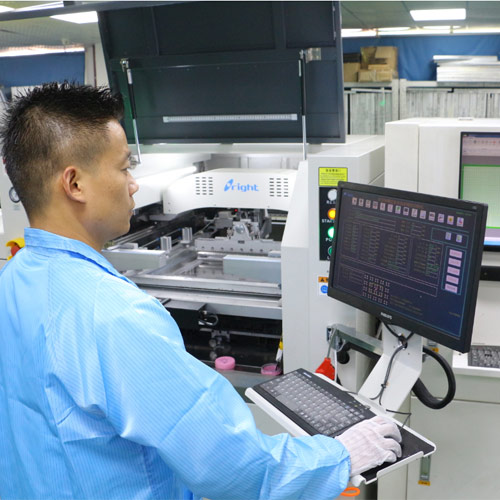

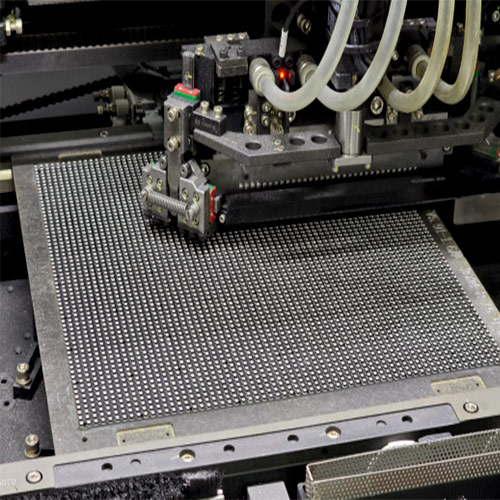

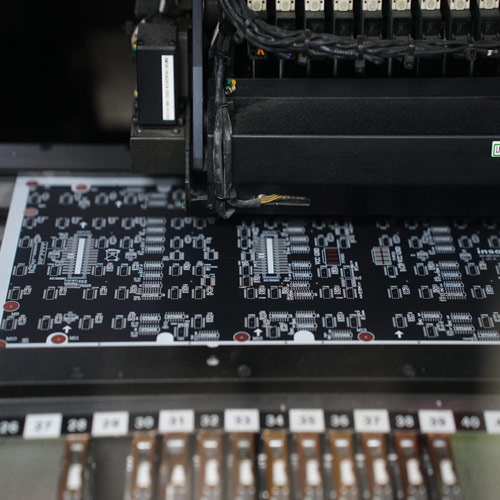

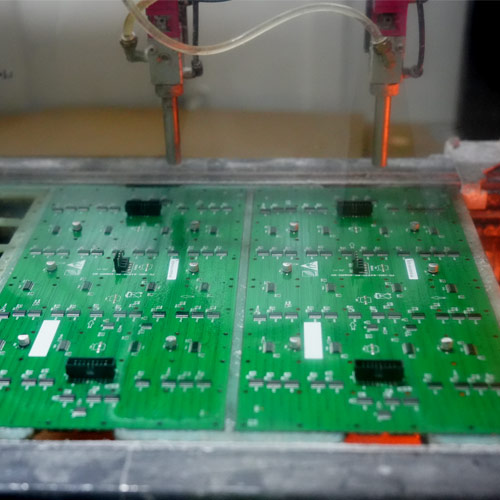

- Manufacturing Process
Advertising LED displays are customized products, with final costs varying significantly based on specifications. For example, a P4 model with a 1920Hz refresh rate costs $625 per square meter, while the same model with a 3840Hz refresh rate costs $735 per square meter.
Just customizing the refresh rate alone results in a $110 per square meter difference. Additional custom parameters will increase the price disparity further.
LED advertising displays come in a wide variety of models, primarily determined by the viewing distance required.
Common models for indoor advertising LED displays include: P1.25, P1.667, P1.976, P2, P2.5, etc.
Common models for outdoor advertising LED displays include: P3.91, P4.81, P5, P6, P8, P10, etc.
Larger model numbers indicate greater viewing distances, while smaller model numbers are suitable for closer viewing distances.
Not necessarily. As the display area increases, additional factors must be considered, such as wall load-bearing capacity, screen heat dissipation, and electrical current requirements. Therefore, the optimal design for advertising LED displays should align with the specific application scenario.
Yes. We can fabricate advertising LED displays into any creative shape you desire. Note that custom creative shapes require slightly longer production time, so advance planning is recommended.
First, advertising LED displays can achieve exceptionally large screen sizes—ranging from hundreds to thousands of square meters, which is unattainable with other display technologies.
Second, advertising LED displays offer remarkable environmental adaptability, functioning seamlessly indoors, outdoors, and even in irregular spaces, a challenge other displays cannot meet.
Combined, these two factors give advertising LED displays irreplaceable advantages in commercial advertising.
Currently, interactive features are integrated only into our LED screen floor tiles and all-in-one LED displays. If you require interactive capabilities for an advertising LED display, please consult our engineers for evaluation and discussion.
Three Key Features of JYLED Advertising LED Displays
Constructed with premium materials, JYLED advertising LED displays offer the following three core characteristics:
Cold Resistance
Operating reliably in temperatures as low as -20°C (-4°F), JYLED advertising LED displays maintain full functionality in extreme cold regions like Russia and Inner Mongolia without performance degradation.
Heat Resistance
Beyond excellent cold resistance, JYLED advertising LED displays also demonstrate outstanding heat tolerance. Field tests confirm continuous operation at 60°C (140°F). This ensures reliable performance in high-temperature environments like Dubai or Kazakhstan.
Moisture Resistance
Addressing the moisture challenges common to many outdoor displays, JYLED’s LED advertising screens handle humidity with ease. For specialized environments like coastal areas, we can further reinforce the advertising LED display to ensure optimal environmental adaptation.
How to Achieve Higher Advertising ROI with JYLED LED Displays?
To maximize advertising ROI with JYLED LED displays, comprehensive coverage is essential. Here are effective strategies:
Combine Diverse Ad Formats
Integrate high-tech transparent LED displays alongside standard models. Differentiated display methods attract greater foot traffic.
Crafting High-Quality Visuals
People are drawn to well-produced or emotionally resonant visuals. Tailoring advertisements with exquisite visuals that align with product characteristics often fosters greater audience connection, thereby boosting advertising ROI.
Optimizing Broadcast Timing
While 24/7 advertising ensures a broader reach, it incurs high costs. Monitor daily data trends to concentrate broadcasts during peak times, avoiding wasted exposure and maximizing returns.
Creative Display Formats
Integrating flexible LED displays or 3D LED screens into creative installations significantly captures attention. When viewers engage and share these experiences on social media, advertising ROI can surge dramatically.
Should you choose front-service or rear-service LED cabinets for advertising displays?
The choice depends on the specific application scenario.
Front-service cabinets are ideal for wall-mounted or recessed installations; they allow modules to be removed or replaced from the front of the screen, thereby saving space.
Rear-service cabinets are suitable for large buildings or massive billboards; they require a clearance of 60–120 cm behind the screen to allow technicians to access, remove, or replace modules.
Which is better for advertising: LED displays or LCDs?
Both LED displays and LCDs are commonly used for commercial advertising. The best choice depends on the specific project requirements. If you want to install a 50-inch indoor advertising display, an LCD is the better option, as LCD-based digital signage is thinner and offers superior image clarity.
However, if you want to install a 10-square-meter indoor billboard, using LCDs would result in visible seams between panels that detract from the viewing experience; in this case, an LED display would be the better choice.
We also frequently receive inquiries regarding outdoor advertising projects. While LCDs are sometimes used outdoors, they are typically limited to sheltered, semi-outdoor environments and smaller screen sizes.
If you need to build a billboard in a completely open or exposed area, an LED display is essential; its high brightness and waterproof capabilities make it perfectly suited for outdoor environments.
