JYLED billboards drive the rapid growth of your advertising business
With the development of intelligence and the continuous improvement of user experience needs, more and more LED billboards equipped with commercial displays are appearing in the city letting people experience a distinctive intelligent life with a new form of media communication.
With JYLED billboards, you can maximize the effect of your advertisement to an unprecedented new height. We sure that our well-designed LED billboards can help you realize a simpler and more efficient way of placing advertisements and communicating marketing advertisements, thus obtaining the best return on investment.
Types of LED billboards
According to different needs, JYLED designs and produces a variety of types of LED billboards, you can choose the one that best matches your actual needs.

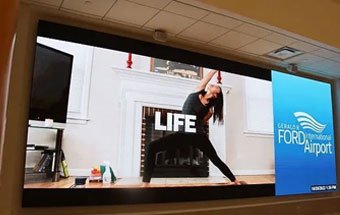

Indoor LED billboard is a high-definition billboard for indoor scenes. JYLED can customize the size of the LED billboard according to the size of your indoor scene, which is a great choice for sellers who want to enhance the attractiveness of their stores through indoor billboards.

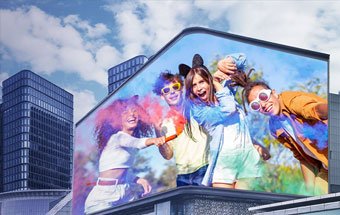

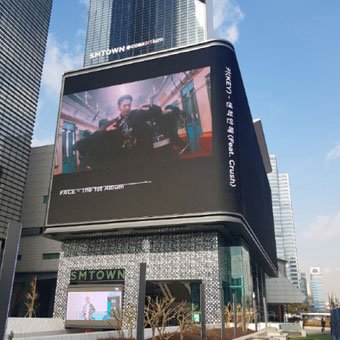

LED billboards are the perfect partner for outdoor scenes. Almost all of the digital billboards you currently see outdoors are outdoor LED billboards made. This is because outdoor LED billboards have high brightness and high waterproof performance, these 2 characteristics make outdoor billboards can run stably in harsh outdoor environments.

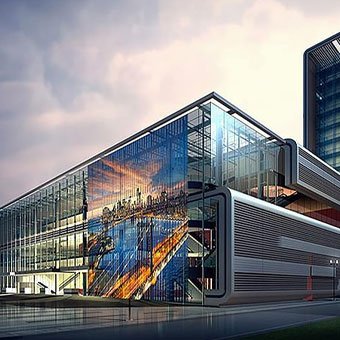

This kind of billboard is made with transparent LED cabinet, which can display the view behind the screen while playing the advertisement content. If your store comes with transparent glass, it will be a great choice to match the transparent LED billboard made by JYLED.

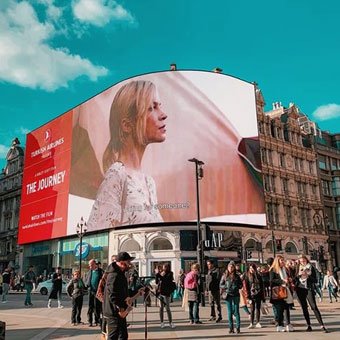

For some customers with creative ideas flexible LED display is the best way to realize. We can assemble the LED billboard into different shapes using flexible LED modules according to your ideas, to realize the display effect of various creative advertisements.
This billboard is used together with specially created 3D materials to realize realistic 3D display effects. 3D LED billboards have become popular in many places around the world for their realistic display effects, such as Shinjuku 3D billboards and China 3D billboards.
For some building surfaces with corners or curvatures where conventional LED billboards cannot be used, JYLED’s curved LED billboard solutions can be considered.

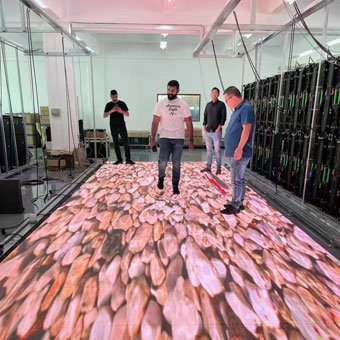

The entire floor is used as a huge advertising display through the floor tile LED display. When people step into this area, they will be attracted by the promotional content displayed under their feet. This differentiated display will leave a deep impression on people.

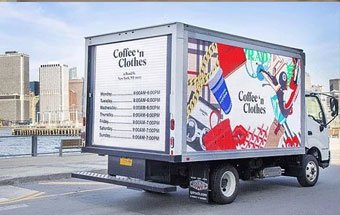

Vehicles using LED billboards are transformed into a billboard that can be moved around at will. This type of mobile LED billboard allows your advertisement to no longer be limited to a certain place, but to be able to be seen by people anywhere.
Common Models of LED Billboards
The viewing effect of an LED billboard is closely related to the pixel pitch you choose. Smaller pixel pitches are clearer when viewed up close, and conversely, larger pixel pitches need to be viewed from a greater distance.
Here are some differences between JYLED billboards at different pixel pitches. If you want to customize LED billboards with other pixel pitches, please contact us.
The 2mm indoor LED billboards are part of the very high definition range and can easily achieve high definition resolutions such as 2K and 4K.

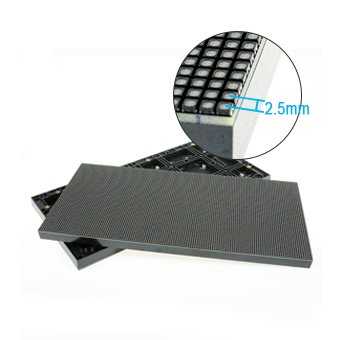

The 2.5 mm modules offer excellent value for money and are often used in indoor LED poster displays and indoor high-definition billboards.

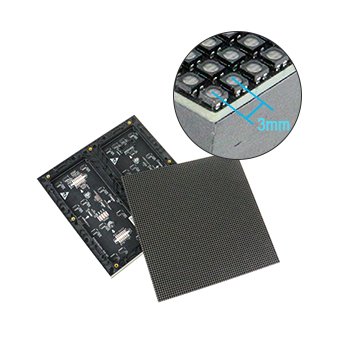

It is a cost-effective indoor LED billboard. You need to keep the viewing range of 3-5 meters for the best display.

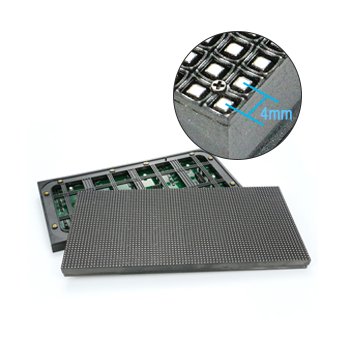

The 4 mm pixel pitch billboard is suitable for both indoor and outdoor use. If you want to use the 4mm LED billboard for outdoor use, we recommend viewing from 4 meters away.
5 mm LED billboards are mostly used for outdoor use. However, it is sometimes used for some larger indoor scenes such as concerts, movie theaters, and so on.
Ideal for use when placed at a distance of 6-8 meters, when you view the LED billboard at this distance, the visual impact it brings is the greatest.
For larger LED billboard, 8 mm is a good choice. This specification is very well balanced in terms of clarity and price, and many customers will give priority to it.

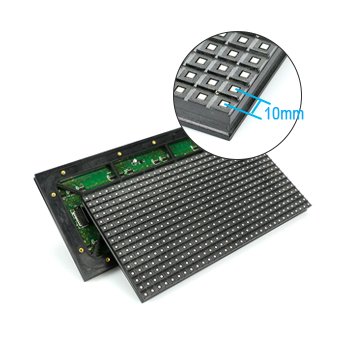

For large LED billboard, choosing 10 mm is the most appropriate. Not only does it have a very high brightness, but the screen effect can also be clearly seen from a long distance.
4 Types of LED Billboard Installation

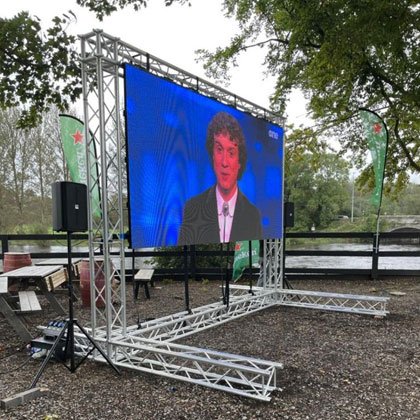

The entire LED billboard is suspended by a wire. This type of installation is commonly used for transparent LED billboards or rental LED billboards.
This type of installation can transform the whole wall into a huge LED video wall, so it is widely used in many shopping malls, airports and other scenes.
Part of the structure of the wall will be hollowed out, and then the LED billboard will be embedded in the wall. This type of installation integrates the billboard with the wall and looks more beautiful.
For some completely empty scenes, several other installation methods will not be able to start, the emergence of column installation is to solve the problem of installing LED billboards in empty scenes.
What are the advantages of LED billboard?
JYLED designs LED billboards with a compact structure, which can help you build the billboard project quickly.
After installing the LED billboard at one time, you can get a continuous return with little or no maintenance.
Purchase a JYLED billboard and receive free, long-term technical support whenever you need it.
Lighter-weight aluminum cabinets make it easier for installers to build LED billboards.
JYLED is a professional manufacturer of LED billboards, which can be fully customized according to your needs.

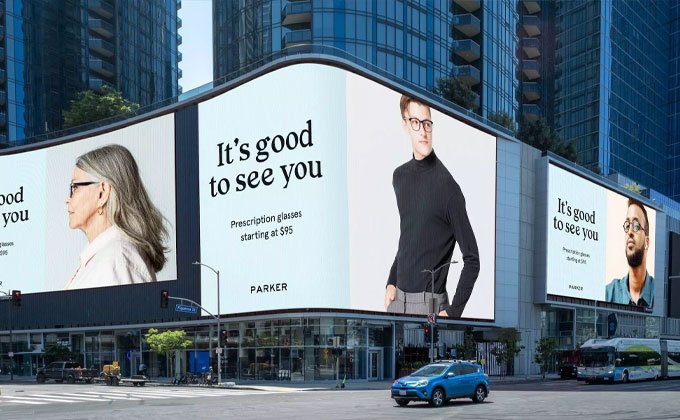

Whether it’s outdoor or indoor, we can make sure your LED billboard is always in bright condition.
Energy consumption control technology Save more energy
Inside the LED billboard, there is a set of perfect energy control solutions, which can help advertisers save more energy when using LED billboards.
Adjustable brightness the light is always soft and not harsh
Through the LED control software adapted by JYLED, it can help you manually adjust the LED billboard to the optimal brightness, ensuring the screen brightness is soft and not harsh.
If you want the LED billboard to automatically adjust the brightness according to the light, please contact us for customization.
Front and back maintenance support for more application scenarios
Our LED billboards are designed with advanced removable latches that support mounting from both the front and the back, which provides a comfortable fit for a wide range of application scenarios.
In terms of maintenance, the removable front and back features save maintenance personnel a lot of labor and allow them to complete the whole maintenance process faster.
Three types of maintenance for LED billboards
The modules on the LED billboard can be removed from the front for maintenance. This kind of front maintenance mode is suitable for wall-mounted or recessed LED billboards.
The module on the LED billboard can be removed from the back for maintenance. This rear maintenance mode is suitable for LED billboards with some space behind.
Modules can be removed from both the front and rear of the LED billboard maintenance. Front and rear maintenance is flexible, but price will be a little higher.
How to control the content of LED billboard?
There are two main ways to control LED billboards: synchronous control and asynchronous control.

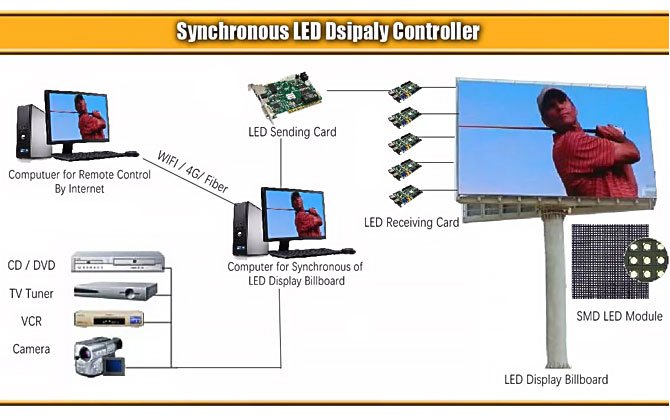

- Synchronous control: using the wired method, let the LED billboard can synchronize the output data in real time, which is very suitable for live broadcasting of events, news media broadcasting, etc.

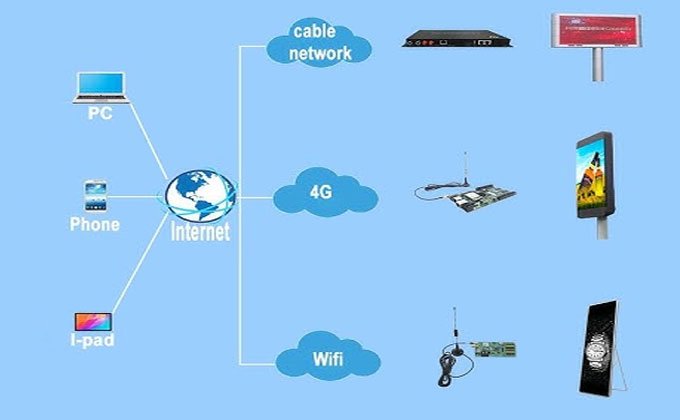

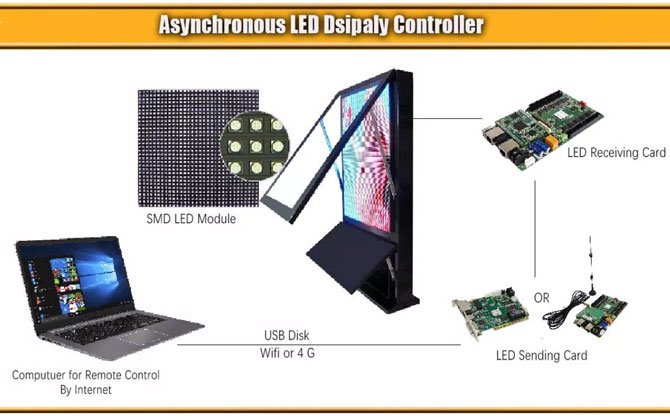

- Asynchronous control: let the LED billboard play the pre-loaded content, according to the different capacity of the storage device, the playback time will be different. This method is ideal for areas that do not require frequent content updates.
Application Scenarios of LED Billboard
Would you like to know in which scenarios JYLED LED billboards are suitable? Let’s find out!
In street furniture, we can see all kinds of standing billboards made with LED displays everywhere. These billboards provide colorful multimedia content for pedestrians.

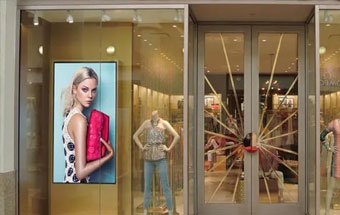

Shopping malls are one of the best places to use JYLED LED billboards. Inside large shopping malls, we will see stores of all sizes decorating and advertising promotional content through different types of LED billboards.
These stores are more likely to get customers to come in and spend money with the bright LED billboards.

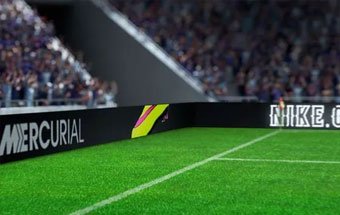

Stadiums are a great place for many sports brands to advertise. LED billboards are the only displays that can fulfill the need to show clear advertisements in large stadiums with a clear viewing angle.
Ditch your traditional bar billboards and try JYLED billboards! With the dynamic display of video LED billboards, you can help to attract more customers to the bar to spend money, so that your bar is full of people.
Want your restaurant to be instantly recognized by customers on the overall shopping street? Give customized LED billboards a try!
With customized shapes, your store’s brand will be more perfectly displayed. Whether it’s day or night, it’s always a great way to catch customers’ eyes and increase your restaurant’s revenue.
Car dealerships often use clear LED billboards to showcase the hottest-selling vehicles in the store. These clear LED billboards display the vehicles without interfering with the view behind them, making them perfect for use in stores to display item details.
Highways are the perfect scenario to use a riser billboard. By building a towering billboard, vehicles can see the LED billboard content from a long distance. For companies that need to advertise their brands and promotional ads, it can be a great way to get the word out.
Difference between traditional billboards and digital LED billboards
Traditional billboards need to be created in conjunction with specific holidays or marketing events, which means that every time there is a change in the content, a lot of the previously created material will be thrown away, which is undoubtedly a huge pollution to the environment. In contrast, the content of digital LED advertising can be replaced at any time, and the replacement process does not require the disposal of any materials, which is very environmentally friendly.
Traditional billboards need to be replaced manually, and when the number of replacements is large, it not only requires a lot of labor and material resources. Unlike that, digital LED billboards can batch control the replacement of content through the cloud. When you need to replace numerous LED billboards, you only need to log into the cloud backend and send the edited commands to have all the billboard contents replaced.
The LED billboards manufactured by JYLED are made of highly durable LED beads. It is able to work for a long time at -20 degrees Celsius, as well as 60 degrees Celsius, which is something that ordinary billboards don’t have.
Once the traditional billboard is exposed to the sun, the spray painting on the surface will gradually fall off, making the display effect greatly reduced. LED billboards are not only not affected by the sun, even if it rains, still clearly visible. This is because the brightness of LED billboards can reach 5500 nits, this brightness ensures that JYLED billboards can still maintain a clear display in bright light or rainy days.
More About Our Company
Lorem ipsum dolor sit amet, mei graecis tacimates te, sed cu nisl explicari, ex dicam tempor euismod pri.
- Parameters
- Gallery
- Product Document
| Model | P4 | P5 | P8 | P10 |
| Pixel Pitch | 4mm | 5mm | 8mm | 10mm |
| Pixel Density | 62500dot/㎡ | 40000dot/㎡ | 15625dot/㎡ | 10000dot/㎡ |
| Color Configuration | SMD 3in1 1R1G1B | |||
| Module Size | 320 x 160mm | |||
| Module Resolution | 80 × 40dots | 64 x 32dots | 40 x 20dots | 32 × 16dots |
| Cabinet Size | 640mm x 640mm/960mm x 960mm or customized | |||
| Driver Mode | 1/10 Scan | 1/8 Scan | 1/5 Scan | 1/2 Scan |
| Cabinet Material | Iron | |||
| Brightness | 4000-7000cd/㎡ | |||
| Max Power Consumption | 1200W/㎡ | |||
| Average Power Consumption | 400W/㎡ | |||
| Refresh Rate | 1920Hz/3840Hz | |||
| Grey Level | 16Bit | |||
| Certifications | CE, ROHS, ISO9001 | |||
| View Angle | Horizontal 140° Vertical 140° | |||
| Screen Control Method | PC or Mobile Phone | |||
| IP Rating | IP65 | |||
| Input Voltage | AC110V-220V,50Hz-60Hz | |||
| Temperature-operating | -10℃-60℃ | |||
| Life Span | ≥100,000 Hours | |||
Since there are many different models of LED billboards, the energy consumption of each model is quite different. Please forgive us for not being able to list them all.Here we give the energy consumption of P10 LED billboards for customers’ reference.
According to our actual calculation, 8000nits P10 LED billboard needs to consume about 150W per square meter, while 6000nits P10 LED billboard needs to consume about 300W per square meter.
If you want to know more about the LED billboard energy consumption, please feel free to contact us.
Our LED billboards are made with high-quality components and can generally last for more than 10 years. Only occasional simple maintenance is required during use.
LED billboards are made with LED modules and have a complex internal structure that allows them to play text, images and videos. LED advertising light boxes are traditional static advertisements that contain LED light to illuminate the entire light box.
Since the LED display screen has unlimited splicing characteristics, as long as the budget is sufficient, it can be spliced regardless of the size.
LED billboards use LED iron cabinets to wrap LED modules. The outside of the iron cabinet is sprayed with an anti-corrosion coating to prevent the iron cabinet from rusting when used outdoors.
LED billboards come in indoor and outdoor varieties, with outdoor billboards typically larger and more complex to install. Here’s an overview of the installation process for large outdoor LED billboards:
Site survey
Detailed planning based on temperature, humidity, terrain, and topography ensures smooth installation. Specialized construction personnel must be employed to ensure stability and safety during installation.
Structure assembly
Different installation methods require different welding techniques for steel structures. Regardless of the method chosen, careful inspection is necessary to ensure the steel structure can withstand various risks.
Screen installation
Mounting the LED billboard screen onto the steel structure is followed by checking the display from different angles to ensure uniform brightness and clear image quality.
Testing and usage
Powering on the LED billboard allows for checking the effects quickly to identify any issues. Troubleshooting for any abnormal displays can be done using LED control software to ensure all effects are presented correctly.
How much is the LED billboard?
LED Bead Material
The cost of LED beads varies depending on the material used to make the beads, and there are three main types of LED bead materials: gold, silver, and copper wires.
LED beads made of gold wire are the most expensive, followed by silver wire, and the cheapest and most commonly used is copper wire.
LED Module Types
The different types of LED modules are divided by different pixel pitches. When the pixel pitch is small, the production process of a single LED module will be more complicated and expensive.
When the pixel pitch is large, the production process of individual LED modules is more mature and the price is relatively cheap.
Size
The size of the screen will also be linked to the cost. When the size you need is large, the more LED modules you need, the more expensive it will be.
When the size you need is small, the number of LED modules required will be less, and the price will be much lower than the large size.
Other Costs of Outdoor LED Billboards
Transportation Cost
Considering the mode of transportation, there are 2 types of transportation for outdoor LED billboards: air freight and sea freight. Air transportation is faster, but the price of transportation will be very high. On the contrary, sea transportation is slower, but the price of transportation will be relatively lower.
Considering the local import taxes, different countries have different import taxes, and even different regions in different countries have different import taxes. For example, the Philippines has tariff rates between 0% and 65%, with an average tariff rate of 10.5%.
In France, the standard VAT rate is 20% of the CIF value of the goods, while the customs duty rate ranges between 0-17%, with an average of about 4.2%.
There will be some distance from the airport or seaport to your warehouse or installation site, and at this time, trucks are usually used for transportation, and their transportation costs should also be included.
Installation costs
If you are a first time buyer and don’t know how to install it, then you will have two options. The first choice is to look for the best local installation company to do the outdoor LED billboard installation for you, they will bring more considerate service at a reasonable price to avoid the customers’ time-consuming and laborious installation process.
The second option is to invite technicians from Chinese installation companies to come over to guide the installation. However, this option should only be considered if you are experiencing difficulties or cannot find a suitable local installation company.
It is important to note that you will be responsible for all costs associated with inviting a Chinese technician over, such as the daily cost of the work, round-trip airfare, lodging, transportation, and visa fees.
If your company already knows how to install outdoor LED billboards, then congratulations on saving a cost!
Site selection cost
Different buildings will have different prices, and the price of a well-located building will be higher. Outdoor LED billboards installed into economically prosperous neighborhoods are even more expensive. For this reason, you can consider the range of sites based on the following:
Areas with high foot traffic: foot traffic refers to the number of people who pass by the store during a certain period of time. This certain period of time usually refers to weekends and breakfast, lunch and dinner hours. High-traffic areas such as business centers, busy streets, and transportation hubs are the best locations for outdoor LED billboards, but they can be very expensive.
Audience Profile: Choose a billboard location based on the behavior and needs of your target audience. For example, brands targeting younger consumers can be placed near universities or entertainment centers. These locations will cost less than high-traffic areas.
Maintenance Costs
Maintenance costs for outdoor LED billboards consist of three main areas: the cost of replacing or repairing modules, the cost of replacing power supplies/receiver cards and cables, and the cost of repairing various minor malfunctions.
When the LED module, power supply, receiving card or cable is damaged, it is necessary for the customer to ask the crane and staff to check which part is damaged at the local LED billboard, and then replace or repair the damaged part.
About the cost of crane and local labor cost
When making repairs, you need to choose technicians who are able to find the problem and fix it. If you want to work as an outdoor LED billboard distributor, then you can come to China to learn how to install and maintain outdoor LED billboards.
If you are the end customer, then you need to talk to your supplier and ask if they have any service offices in your country. If not, you can find an LED display installation company to help you out.
About replacement spare parts
Regarding every LED display order, customers need to get at least 5% spare LED modules of the same batch from the supplier. Meanwhile, we will provide you with a three-year quality guarantee.
During the three-year period customers can send the damaged modules back to China, we will repair them for free and will send them with the next order. If the power supply/control card/cable is also damaged during this period, then we can also provide you with the power supply/control card/cable for free.
Power Cost
The power consumption of outdoor LED billboards is different for different sizes. Customers can ask the supplier to provide the power consumption of the whole LED billboard when the LED billboard is shipped.
After that, the customer can calculate the approximate cost based on the power consumption provided by the outdoor LED billboard. When the screen operates for 3 to 6 months, the customer will know the approximate electricity cost of the LED billboard.
All in all, since LED billboards are customized products, there is no fixed price on the market. However, based on our previous LED billboard productions, prices typically range from $55,000 to $80,000. Larger and more complex LED billboards will incur higher costs.
