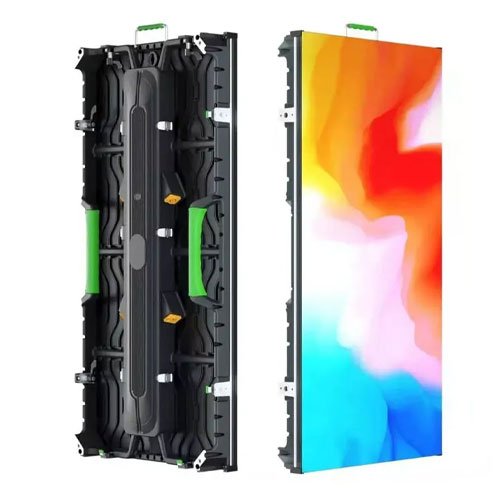

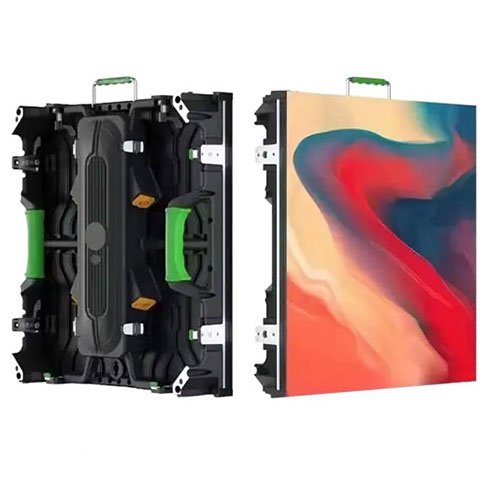

960*960 Rental LED Display Screen

960*960 Rental LED Display Screen

P3 | P4 | P5 | P6 | P6.67 | P8

• Side lock design, quick installation

• Can be hoisted, base mounted, fixed installation

• Front and rear maintenance, easy to disassemble and assemble

• Screen size, arbitrarily assembled

Parameter

Pixel Pitch(mm)P2.5P3.33P4P5P6.66P8P10
LED EncapsulationNationstarNationstarNationstarNationstarNationstarNationstarNationstar
LED TypeSMD 1415SMD 1921SMD 1921SMD 2727SMD 2727SMD 3535SMD 3535
Cabinet Size (W x H, mm)960*960960*960960*960960*960960*960960*960960*960
Depth(mm)150150150150150150150
Weight(kg/m2)35353535353535
Control SystemNovastarNovastarNovastarNovastarNovastarNovastarNovastar
Brightness(nits)(cd/m2)6500650065006500650070007000
Viewing Angle140 * 140140 * 140140 * 140140 * 140140 * 140140 * 140140 * 140
Contrast Ratio2000 : 12000 : 12000 : 12000 : 12000 : 12000 : 11000 : 1
Power Consumption (Avg.)300300300300300350350
Refresh Rate(Hz)1920192019201920192019201920
Driving ICICN2038SICN2038SICN2037ICN2037ICN2037ICN2037ICN2037
Ingress Protection (IP)IP65IP65IP65IP65IP65IP65IP65
Cabinet TypeMag-AlloyMag-AlloyMag-AlloyMag-AlloyMag-AlloyMag-AlloyMag-Alloy
Data Processing14 Bit14 Bit14 Bit14 Bit14 Bit14 Bit14 Bit
Power Supply(300w)MeanwellMeanwellMeanwellMeanwellMeanwellMeanwellMeanwell

Save transportation costs

The total thickness of the screen is 125mm (box 110mm + module 15mm),
The packaging volume is reduced by 40%, which greatly saves transportation costs.

Energy-saving and power-saving, quick installation

Using energy-saving IC, the average power consumption is only 150W/square meter.

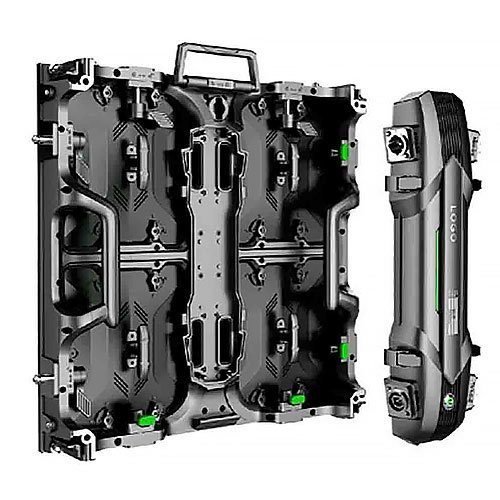

A box with 4 quick locks enables quick assembly, one push and one pull, the installation is completed in an instant.

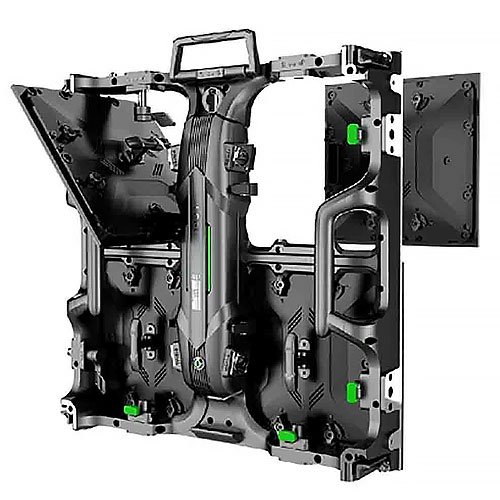

Perfect flatness

The box body is formed by die casting at one time, with high-precision CNC fine washing,
The accuracy of the diagonal and the plane is accurate to millimeters.

Compatible with multiple models

Suitable for all outdoor 320*160mm modules, including outdoor P4/P5/P5.93/P6.67/P8/P10,
And outdoor dual maintenance 320*320mm module, including outdoor P6.67/P8/P10

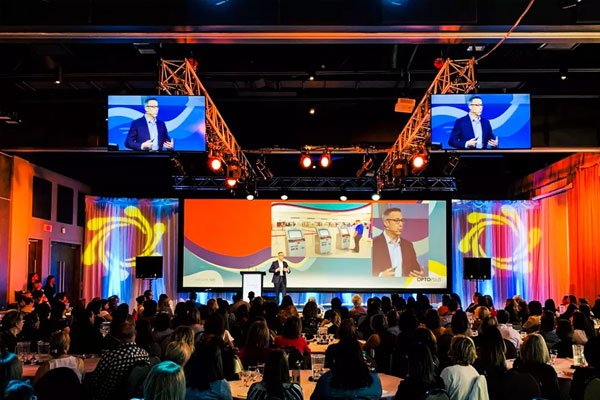

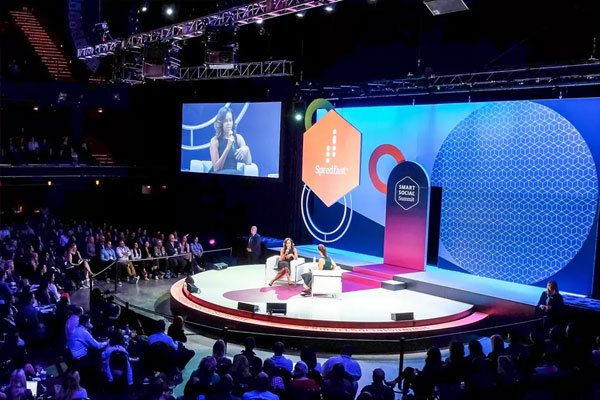

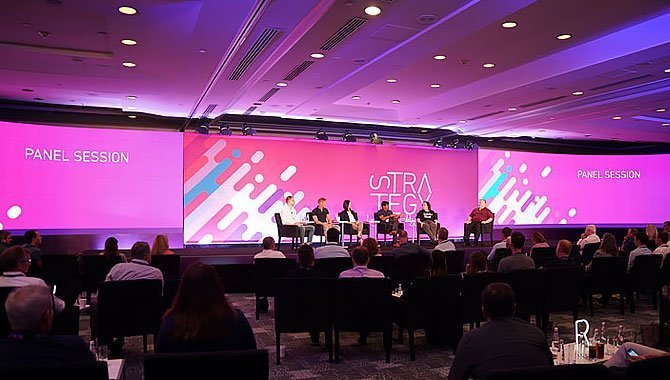

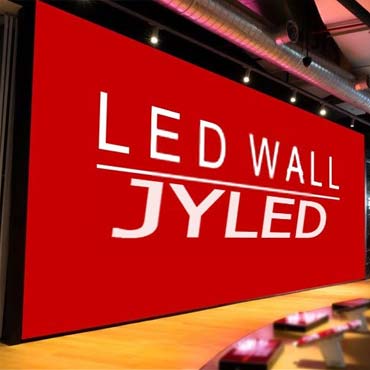

Application area

Die-cast magnesium-aluminum outdoor LED screens are used in outdoor media, exhibitions, billboards, information displays, building advertising, stations, airports and other fields

Hotel

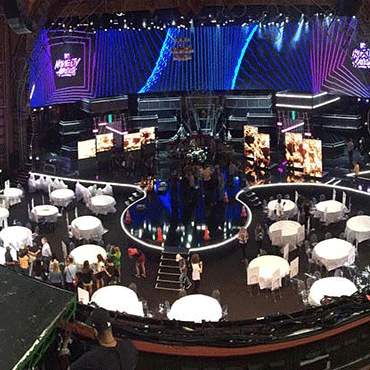

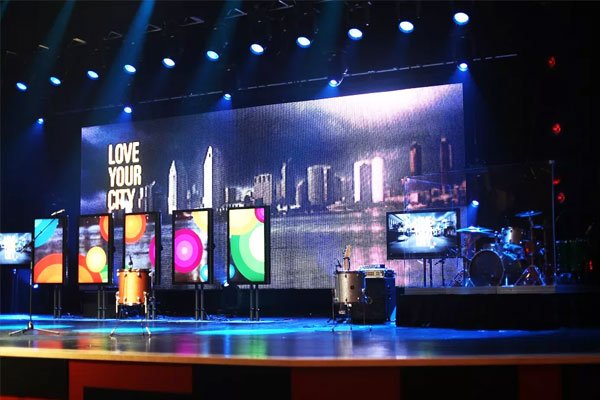

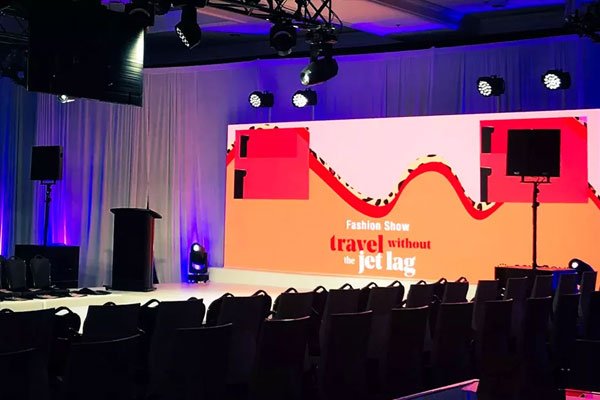

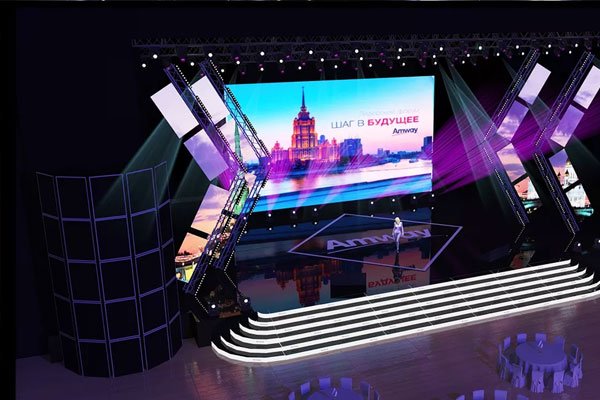

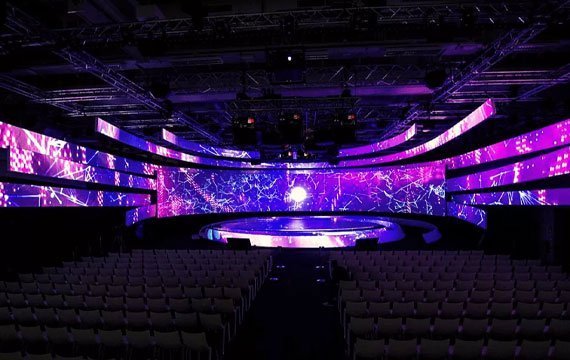

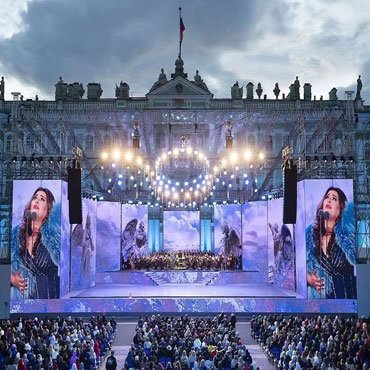

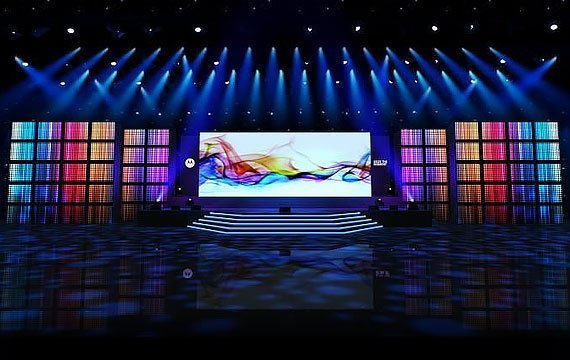

stage rental

TV station

shopping mall

stadium

more
